Hardware solutions

Vehicles that arrive with the software already running on them. Take a complete vehicle, or take the bare platform and put your own module on the deck.

AMR

One partner for the whole vehicle: the P250 platform base, the navigation software on it, and ACS coordinating the fleet. Everything above the deck plate belongs to the top module and everything below it is platform, so the same base carries a shelf, a conveyor, a SCARA, or an arm — and every vehicle in the family shares one interface.

The P250 platform base seen from above and to one side: matte white covers over a charcoal skirt.

What is included

Vehicle platform — P250
A modular AMR drive base with a frozen deck interface: 40 M8 inserts at 100 mm pitch and two ø12 H7 dowels. Top modules bolt down and locate the same way on every length in the family.
Navigation software
Sensor fusion combines lidar, landmark, line, vision, and sky guide sensors, so vehicles run reliably even where SLAM alone struggles.
Fleet management — ACS
Route planning and traffic management for dozens of vehicles, including single-lane paths. An ETA-aware route prediction algorithm keeps unnecessary stops and waiting to a minimum.

Views

  • Front elevation of the P250.
    PL 02Front
  • Side elevation of the P250.
    PL 03Side
  • Rear elevation of the P250 showing the charging plates.
    PL 04Rear, with the charging plates
  • Plan view of the P250 deck plate.
    PL 05Plan, deck plate and corner castings

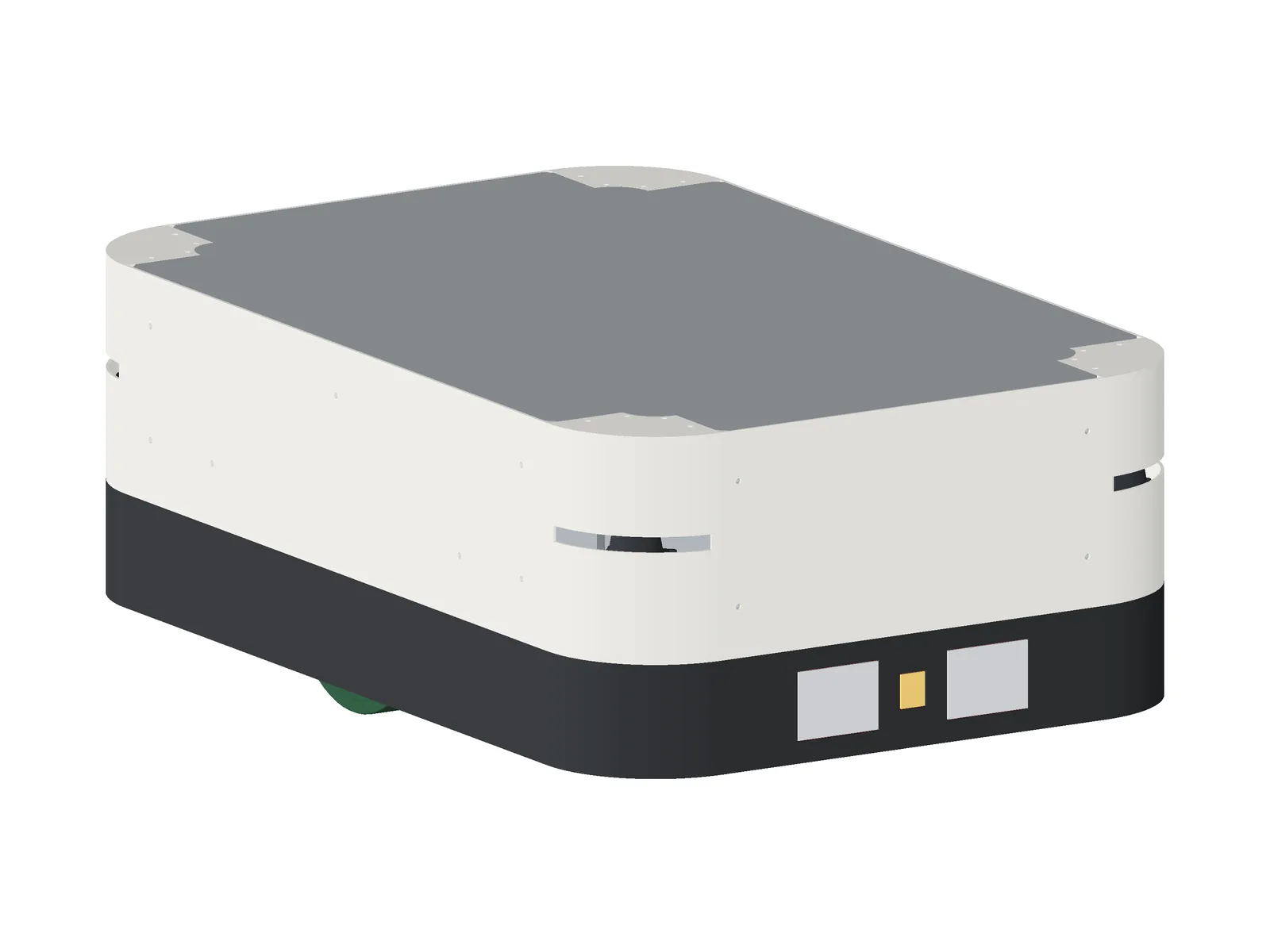

  • The P250 seen from behind and to one side.
    PL 15Battery drawer and charge plates share one end

P250 platform base

The rating is three figures at once, because mass alone means nothing for a base that carries arms: 250 kg static, payload centre of gravity no more than 600 mm above the deck and within ø200 mm of the rotation axis, and 150 N·m continuous deck torque (300 N·m peak).

Rating
250 kg static · payload CG ≤ 600 mm above deck · 150 N·m continuous deck torque, 300 N·m peak
Envelope
950 × 650 × 325 mm over the optical hoods · 900 × 600 mm chassis · deck 325 mm above floor
Turning
Swept radius R581 · spins on the spot in an 1162 mm corridor
Deck interface
40 × M8 inserts, 8 × 5 grid at 100 mm pitch · 2 × ø12 H7 dowels, 600 mm apart
Running gear
2 driven ø200 wheels on pivoted, spring-loaded drive units with ±10 mm travel · 4 ø100 casters rated 200 kg each
Speed
1.5 m/s full-speed mode · 0.8 m/s reduced-speed mode, selected at integration
Sensing
2 lidar heads on opposite corners, 180° each, scan planes at 230 / 270 mm · downward floor camera on the rotation axis
Power
48 V / 30 Ah LiFePO₄ pack, 1.54 kWh · about 5 h at 300 W average · automatic contact charging · pack in a rear drawer
Ground clearance
125 mm

Detail

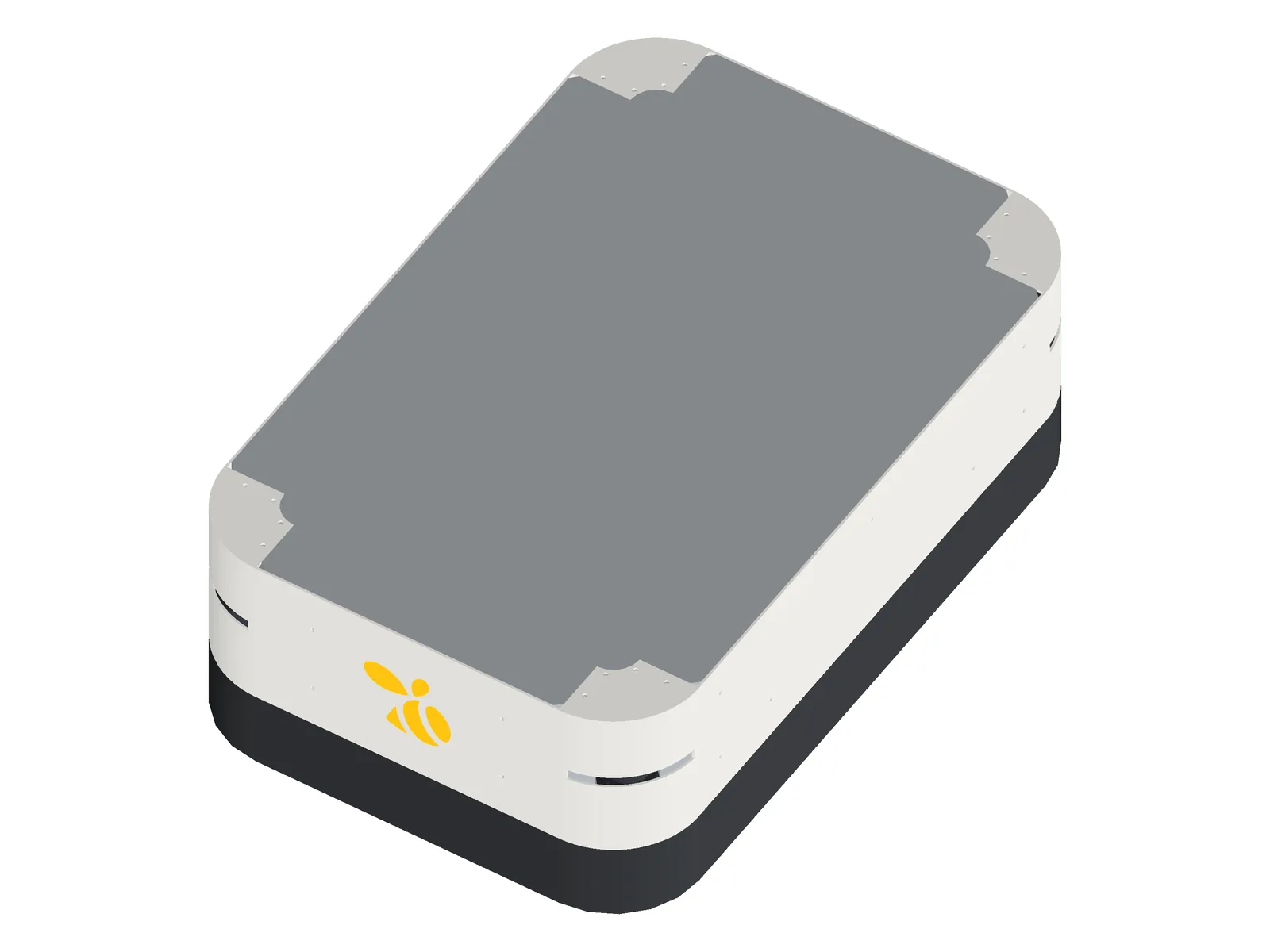

  • The P250 seen from above and to the front, showing its flat deck plate.
    PL 06Deck plate, 40 M8 inserts at 100 mm pitch
  • Close view of a drive unit: green tread, red die spring, blue pivot bracket.
    PL 07Pivoted drive unit, spring pinned at both ends

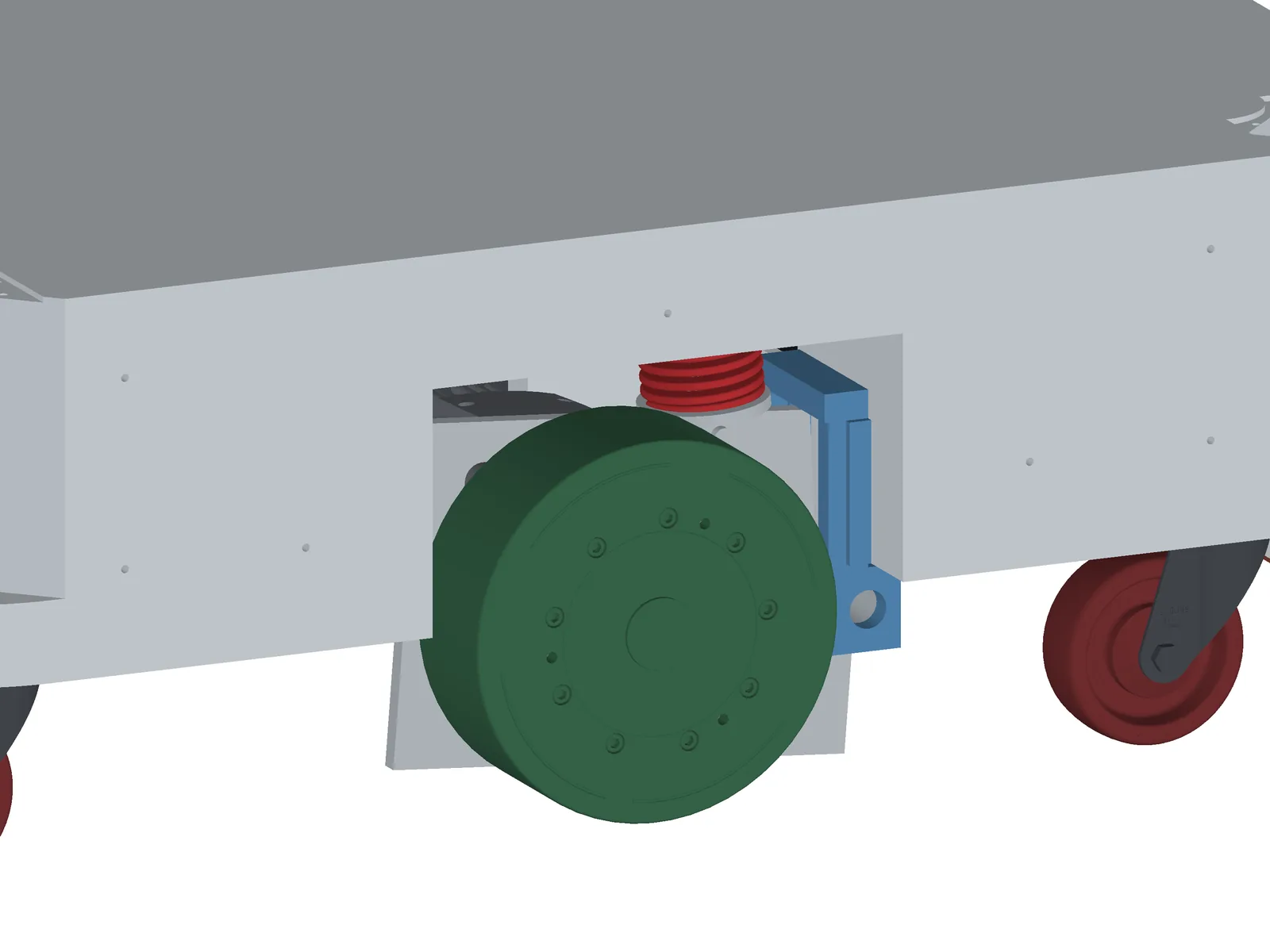

  • Drive unit at full compression: spring short, wheel raised.
    PL 08Compressed, wheel +10 mm, spring 59.5 mm

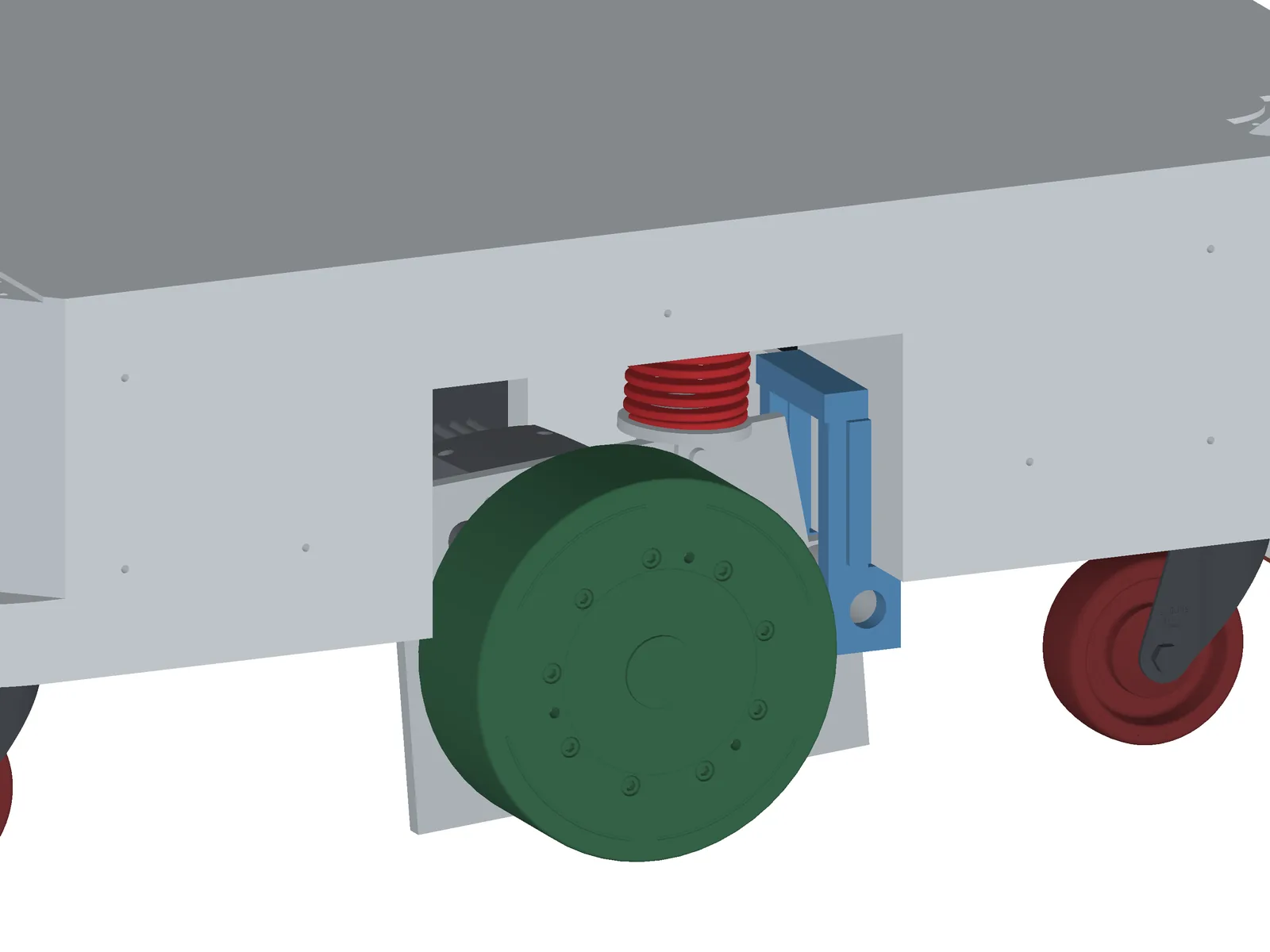

  • Drive unit at full extension: spring long, wheel dropped.
    PL 09Released, wheel −10 mm, spring 69.4 mm
  • Plan view with the two corner scanner apertures marked.
    PL 10Scanner apertures on opposite corners, 180° each
  • Underside detail with the centred floor camera marked.
    PL 11Downward floor camera on the rotation axis
  • Rear with the three charging contact plates marked.
    PL 12Power plates either side of the centre pilot plate
  • Straight-on detail of the rear charging plates.
    PL 13Pilot gold-plated, power plates nickel-plated copper

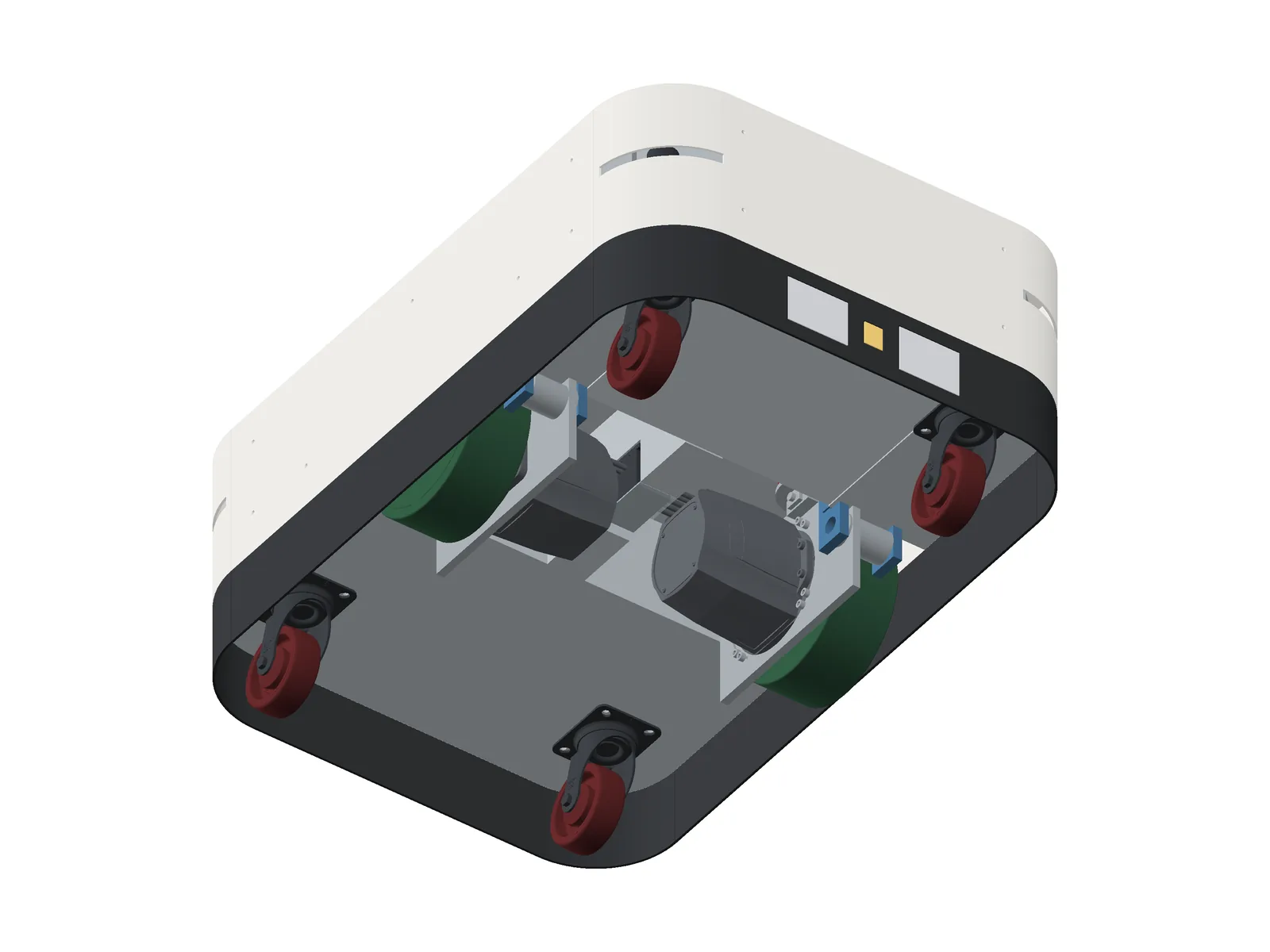

  • Underside of the P250: four casters, two drive wheels, battery tray.
    PL 14Underside, four casters, two drive wheels, battery tray

Family — three lengths, one interface

ModelChassisEnvelopeSwept RCorridorDeck insertsRated
P250-S700 × 600750 × 650501100230250 kg
P250-M900 × 600950 × 650581116240250 kg
P400-L1200 × 6001250 × 650711142255400 kg

Dimensions in mm. Swept radius measured over the corner optical hoods.
